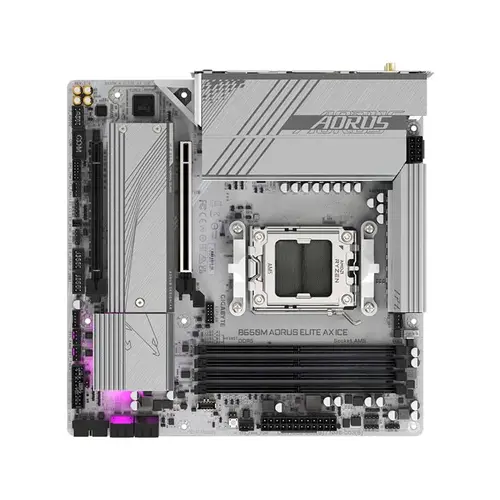

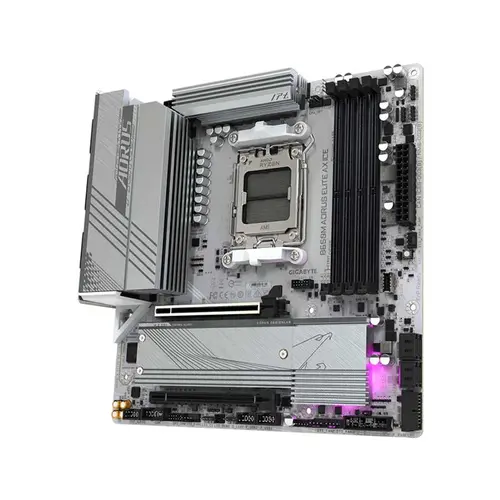

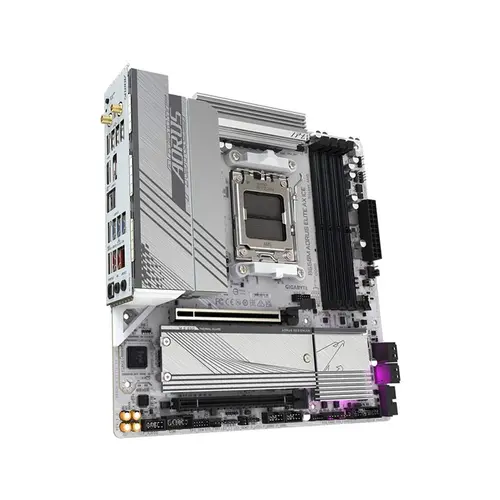

Gigabyte B650M Aorus Elite AX ICE AM5 Micro-ATX Motherboard

Original price was: ৳ 27,000.Current price is: ৳ 24,500.

MARKET PRICE: 27,000 TK

NOW: 24,500 TK (2,500 TK DISCOUNT!)

NEW INTACT + 3-Year International Warranty

Gigabyte B650M AM5 Motherboard

Micro ATX | 4x Slots DDR5 up to 8000 MHz OC | PCIe 4.0 | Gen5 + Gen4 M.2

Ryzen 7000/8000/9000 Support | Wi-Fi 6E + BT 5.3 | HDMI + DP Output

Only 1 item(s) left in stock.
  ... people are viewing this right now

✅ Free International Warranty Support:

This product comes with Genuine International Warranty. In case of any defect, BengalPC will handle the full warranty claim process by sending the item to the Overseas official brand-authorized service center — at no extra cost to you.
We ensure smooth and transparent support even if the product is not covered by local distributors, giving you complete peace of mind.

Gigabyte B650M Aorus Elite AX ICE AM5 Micro-ATX Motherboard:

The Gigabyte B650M Aorus Elite AX ICE AM5 Micro-ATX Motherboard is a compact powerhouse designed for gamers, creators, and enthusiasts seeking robust performance and next-gen features. Built on the AMD B650 chipset, it supports AMD Ryzen 7000, 8000, and 9000 Series Processors, providing a scalable and future-proof platform for modern computing needs. Its standout support for DDR5 memory allows configurations of up to 256GB, with overclocking speeds reaching 8000 MT/s, thanks to four DIMM slots and dual-channel architecture. Compatibility with AMD EXPO and Intel XMP profiles ensures seamless memory tuning for high-performance tasks.

Connectivity is a major strength, offering Realtek Wi-Fi 6E and Bluetooth 5.3 for fast and reliable wireless networking, as well as Realtek 2.5GbE LAN for stable, high-speed wired internet essential for gaming and streaming. Expansion flexibility includes PCIe 4.0 support, featuring a PCIe 4.0 x16 slot linked directly to the CPU for top-tier GPU performance. Storage options are generous, with dual M.2 slots supporting PCIe 5.0/4.0 NVMe SSDs, along with four SATA 6Gb/s ports supporting RAID for enhanced data management and redundancy.

For visuals, the board supports integrated graphics via HDMI 2.1 and DisplayPort 1.4, allowing resolutions up to 4096×2160 at 60Hz and 3840×2160 at 144Hz, perfect for high-refresh-rate monitors and 4K content. Audio is powered by Realtek High Definition Audio, delivering clear and immersive sound for games and media.

Convenient features like the Q-Flash Plus button make BIOS updates simple, even without a CPU or memory installed. It also includes a USB Type-C port with USB 3.2 Gen 2×2 support for ultra-fast file transfers. With durable construction, enhanced RGB and LED strip support, and a 3-year warranty, the Gigabyte B650M Aorus Elite AX ICE offers premium functionality in a compact Micro-ATX form factor.

Buy Gigabyte B650M Aorus Elite AX ICE AM5 Micro-ATX Motherboard Price in Bangladesh:

Gigabyte B650M Aorus Elite AX ICE AM5 Micro-ATX Motherboard Price in Bangladesh is 24,900 Taka. You can buy B650 Aorus Elite AX ICE Motherboard for only 24,900 Taka in BD with 3 Years Warranty from BengalPC.

Basic Information

Model: Gigabyte B650M Series (Micro ATX)

Supported CPU: AMD Ryzen 7000 / 8000 / 9000 Series Processors

Socket: AM5

Chipset: AMD B650

Form Factor: Micro ATX (244 mm x 244 mm)


Audio

Codec: Realtek Audio CODEC

Channels: 2/4/5.1/7.1-Channel High Definition Audio


Expansion Slots

PCI-E x16 Slot 1:

PCIe 4.0 x16 (Ryzen 7000)

PCIe 4.0 x8 (Ryzen 8000 Phoenix 1)

PCIe 4.0 x4 (Ryzen 8000 Phoenix 2)

PCI-E x16 Slot 2:

PCIe 4.0 x4


M.2 Socket

Slots: 2 x M.2

Type: Gen5 (M2A_CPU), Gen4 (M2B_CPU)

M2A_CPU: PCIe 5.0 x4/x2 (Ryzen 7000)

M2B_CPU: PCIe 4.0 x4/x2 (Ryzen 8000), x2 on Phoenix 2


Memory

Type: DDR5

Slots: 4

Max Capacity: 256GB

Supported Speeds:
8000(OC), 7800(OC), 7600(OC), 7200(OC), 7000(OC), 6800(OC), 6666(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5600(OC), 5200, 4800, 4400 MT/s

Dual Channel Support: Yes

ECC Support: Non-ECC, Un-buffered DIMM

Overclock Profiles: AMD EXPO & Intel XMP


Graphics

HDMI: 1 x HDMI 2.1 (4096x2160 @ 60Hz)

DisplayPort: 1 x DisplayPort 1.4 (3840x2160 @ 144Hz)


Connectivity & Ports

USB (Rear):

1 x USB 3.2 Gen 2 Type-C

2 x USB 3.2 Gen 2 Type-A

5 x USB 3.2 Gen 1

4 x USB 2.0

USB (Internal):

1 x USB 3.2 Gen 2x2 Type-C Header

3 x USB 3.2 Gen 1

4 x USB 2.0

LAN: Realtek 2.5GbE

Wi-Fi: Wi-Fi 6E (Realtek RTL8852CE or Intel AX210 depending on revision)

Bluetooth: 5.3


Storage

M.2 Slots:

1 x PCIe Gen5 x4/x2 (M2A_CPU)

1 x PCIe Gen4 x4/x2 (M2B_CPU)

SATA Ports: 4 x SATA 6Gb/s

RAID: RAID 0, 1, 10 for both NVMe and SATA


Internal I/O Ports

1 x 24-pin ATX Power

1 x 8-pin CPU Power

1 x CPU Fan

1 x CPU Fan / Pump

3 x System Fan

1 x System Fan / Pump

2 x Addressable RGB Headers

2 x RGB LED Headers

1 x CPU Cooler RGB Header

1 x USB 3.2 Gen 2x2 Type-C Header

1 x USB 3.2 Gen 1 Header

2 x USB 2.0 Headers

1 x Front Panel Audio

1 x Serial Port Header

1 x TPM Header

1 x Clear CMOS Jumper

1 x Reset Jumper

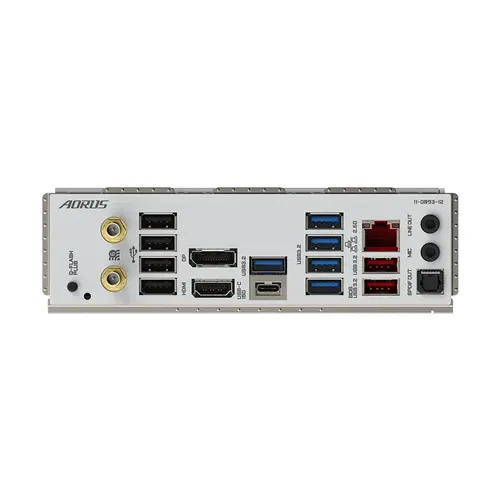

Back Panel Ports

1 x DisplayPort

1 x HDMI

1 x USB 3.2 Gen 2 Type-C

2 x USB 3.2 Gen 2 Type-A

5 x USB 3.2 Gen 1

4 x USB 2.0

1 x 2.5G LAN Port

1 x Optical S/PDIF Out

2 x Audio Jacks

2 x Wi-Fi Antenna Connectors

1 x Q-Flash Plus Button


Operating System Support

Windows 11 64-bit, Windows 10 64-bit


Warranty

Warranty: 3-Year International Warranty
